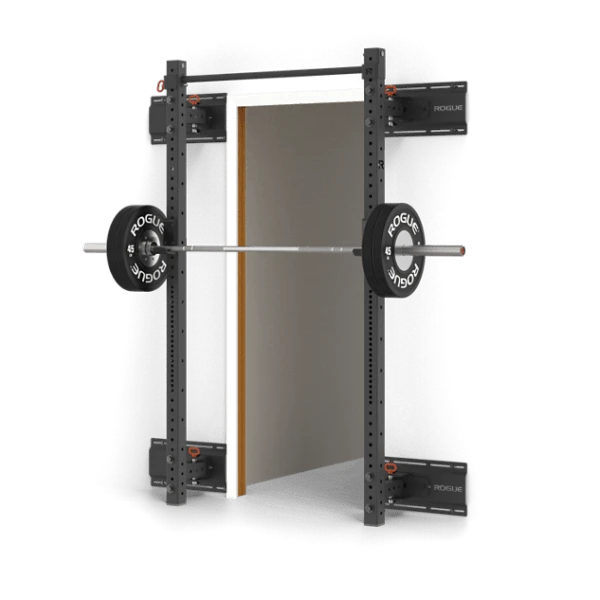

The Rogue RML-90SLIM Door Mount Rack is a fold-back version of our space-efficient 90” Slim Rack, optimized with a unique, split-stringer design for mounting the unit around a door frame. There are two key benefits to this set-up:
1. Gym owners get the minimal depth of a 2-upright Slim Rack without the limitations of having a wall right behind the rack. This means athletes can comfortably perform kipping pull-ups without fear of kicking the wall.
2. The open doorway enables an incline bench set-up that’s not possible with standard wall-mounted Slim Racks.
The Rogue Door Mount Rack is manufactured in the USA and features two 3×3” 11-gauge steel uprights (with laser-cut numbering and protective UHMW feet), a Monster Lite Adjustable Pull-up Bar, and a set of standard Monster Lite J-Cups. Our convenient hinge-and-pin system ensures that the uprights are secured in place when the pin is fastened, and that they can easily fold back (away from the door frame) when not in use. When folded, the unit extends just 5” off the mounting surface, opening up substantial room in a training space.
Is My Doorway Compatible?
We’ve ensured that this unit will fit all standard door widths of 28”, 30”, 32”, and 36”. The four stingers provided with the Door Mount Rack are designed to butt up to the edge of the door frame, and should be mounted just outside of the trim around the door. This means that the maximum compatible width of the door + trim is 42.25” (36” nominal door with 3” trim on each side). The stringers themselves are 19.5” wide, so adequate wall-mounting space with be needed on both sides of the door frame, as well.
Specifications:
- Made in the USA
- Patent Pending
- Doorway-Mounted Slim Rack
- 3×3” 11-gauge steel uprights w/ UHMW feet caps
- Unit Height (with feet): 90.375”
- Weight: 170 LBS (Including stringers & pull-up bar)
- Depth from Mounting Surface: 13″ (when in use) / 5″ (when folded)
- Width: 49.1875″ (Outside Uprights), 43.1875″ (Inside Uprights)
- 4 Stringers: 11-gauge steel, laser-cut Rogue branding, 19.5” width each
- ML Adjustable Pull-Up Bar – 86.5” max height, to center of bar*
- Finish: Texture Black Powdercoat
- Monster Lite J-Cups and Required Hardware included
